Enable the Neotys Design Studio module for Nudge APM

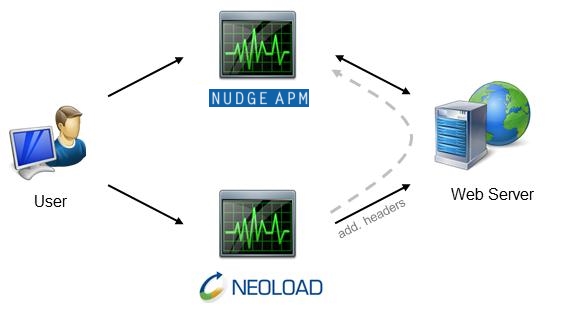

The Neotys Design Studio module for Nudge APM sends specific information to Nudge APM during a Neotys Design Studio test. It adds additional information to the HTTP headers so that Nudge APM can list the transactions initiated from Neotys Design Studio.

The User Path names, Transaction names, and Other action names options are selected by default as the headers information.

All Neotys Design Studio requests are appended with the information selected. When properly configured, Nudge APM can read the additional headers. The additional line allows Nudge APM to identify the business transactions of the test run using Neotys Design Studio.

• Information: When no type of element is selected, the function is automatically disabled.

• To enable the Neotys Design Studio module for Nudge APM

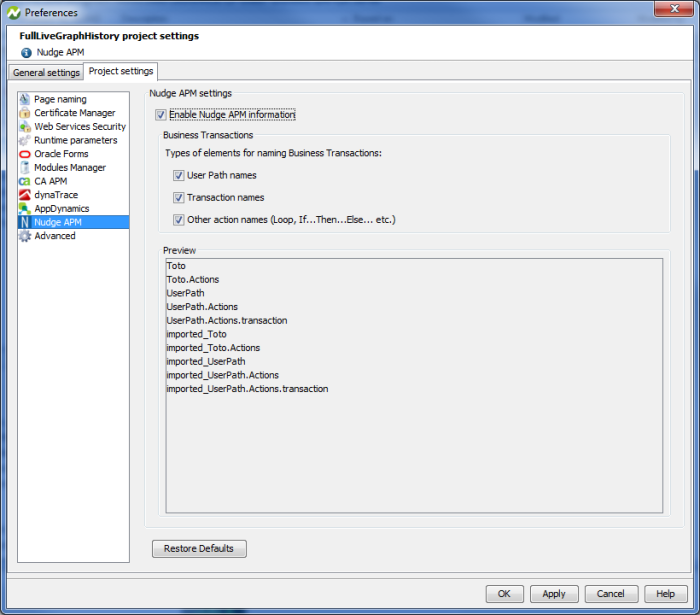

1. In the Neotys Design Studio menu bar, click Edit > Preferences > Project settings > Nudge APM.
2. Select Enable Nudge APM information.
3. Configure Nudge APM to allow for Neotys Design Studio naming settings.
