Attach the API source in Eclipse

This section describes how to attach the sources of the public API provided. The sources are provided in the NeoLoad installation directory as a JAR file:

<install-dir>\api\Data Format Extension API\Java\neotys-codec-api-x.y.z-sources.jar

• To attach the API sources in Eclipse

1. Open the Java project in Eclipse.

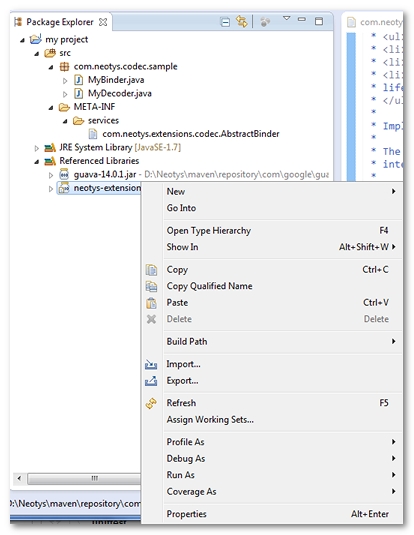

2. Right-click the neotys-codec-api-x.y.z.jar file and select Properties.

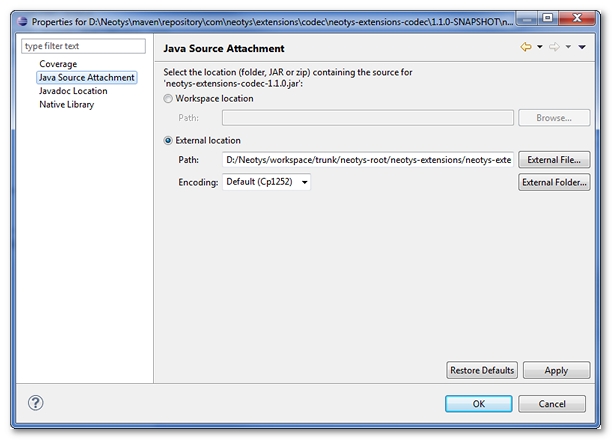

3. Select the Java Source Attachment property.



4. Check the External location option and click the External File button to select the file <install-dir>/api\Data Format Extension API\Java\neotys-codec-api-x.y.z-sources.jar.
5. Click OK to validate the attachment.

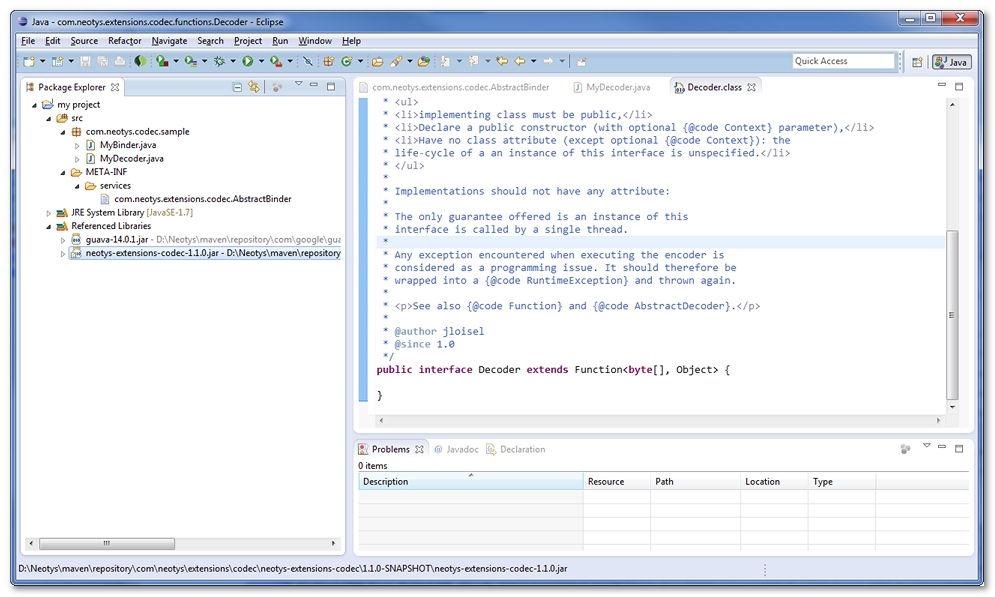

   The sources are attached and you can read the Javadoc and the API source code.
