AMF streaming

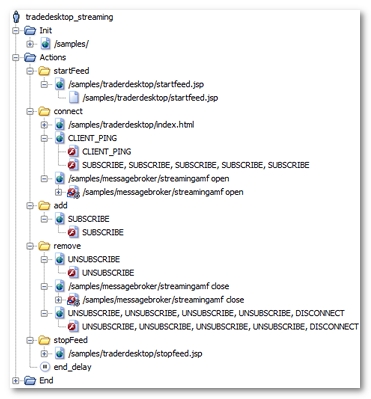

After the recording, a User Path using AMF streaming is displayed as follows.

AMF streaming requests are identified as having a name with the <path> open and <path> close formats.

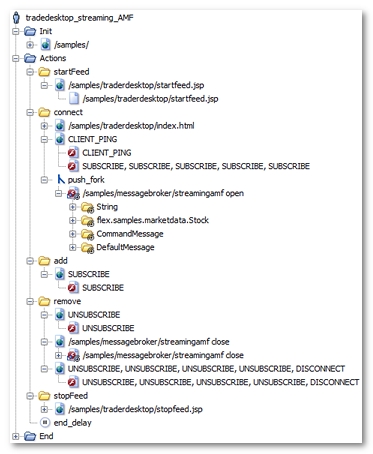

Once processed by the Neotys Design Studio Post-recording wizard, the User Path is modified as follows.

Neotys Design Studio has made the following noticeable changes:

• The open Push request (/samples/messagebroker/streamingamf open for example) has been placed in a secondary execution thread, push_fork.
• Neotys Design Studio identifies the different types of message returned through the Push channel during recording. These different objects are modelized by the Push messages (flex.samples.marketdata.Stock or String for example).
• The close Push request (/samples/messagebroker/streamingamf close for example) tells the server to stop Push. Upon receiving the request, the server closes the streaming request /samples/messagebroker/streamingamf open, allowing Neotys Design Studio to move on to the next action. There are no other actions in the push_fork object so the secondary thread ends.
