AMF polling

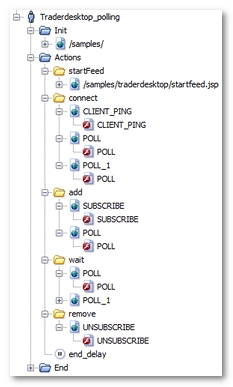

After the recording, a User Path using AMF polling is displayed as follows.

• Information: AMF polling requests are identified as having a name with the POLL_XXX format.

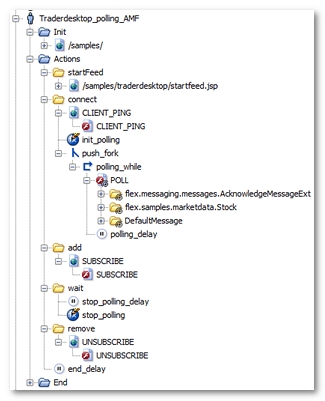

Once processed by the Neotys Design Studio Post-recording wizard, the User Path is modified as follows.

Neotys Design Studio has made the following noticeable changes:

• All the AMF polling requests have been grouped into a single polling request (POLL for example). This request has been placed in a loop (polling_while for example), which continues to loop until the NL-stopPolling variable generated by Neotys Design Studio becomes true. Lastly, the loop itself has been placed in a secondary execution thread using a fork action (push_fork for example). For more information, see Polling requests.
• Neotys Design Studio identifies the different types of message returned through the Push channel during recording. These different types of message are modelized by the Push messages (flex.samples.marketdata.Stock or flex.messaging.messages.AcknowledgeMessageExt for example).
• The variable modifier init_polling initializes the NL-stopPolling variable, with the false value, to have the polling function work on every Virtual User iteration.
• The polling_delay is the average of the time intervals between two polling requests in the original User Path.
• The stop_polling variable modifier triggers the exit from the polling loop by modifying the value of the NL-stopPolling variable.
